Machine Mounted
Flameproof Safety Products

MONITECH FLAMEPROOF KEYSWITCH

The Monitech Machine Mounted Flame Proof Key Switch has 2 high current change over switches that provides flexibility and ensures reliable operation. The unique robust keys make the unit difficult to tamper with and restricts operation to authorised persons only. The multiple key options also allow for several circuits that can only be operated by persons authorised to do so.

FUNCTIONALITY & PERFORMANCE:

  • Proven technology
  • Rugged, certified flameproof enclosure
  • 2 x change over contacts

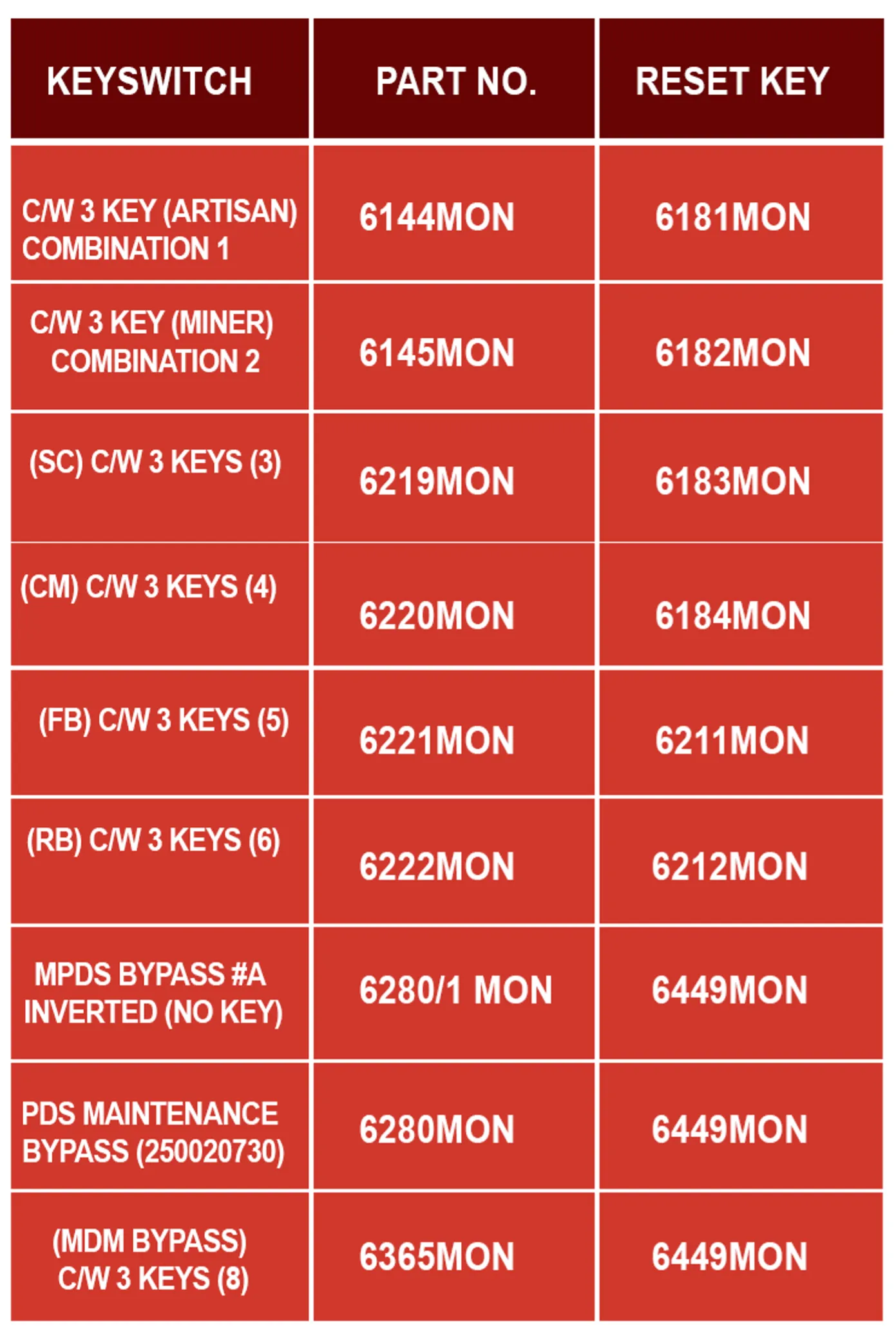

  • Intelligent Ronis key design available in multiple (11) combinations:
  • Master key (available for all variations)
  • Fully configurable to user requirements
  • Duplicate keys only available from OEM
  • Mounting holes compatible with standard key switch footprint
  • Panel mount version available

Specifications:

  • Gland entries 2 x 25mm
  • Electrical Switch Specifications:
  • Butt Action Rotating Switch
  • Rated 20A @l 300V AC
  • 2 x C/0 Contacts

Certifications:

  • Ex db I Mb
  • IA Certification Number: MASC M/23-2111X

Machine Mounted Positions:

Contact Us
keyswitch-1
keyswitch-2

Monitech Products

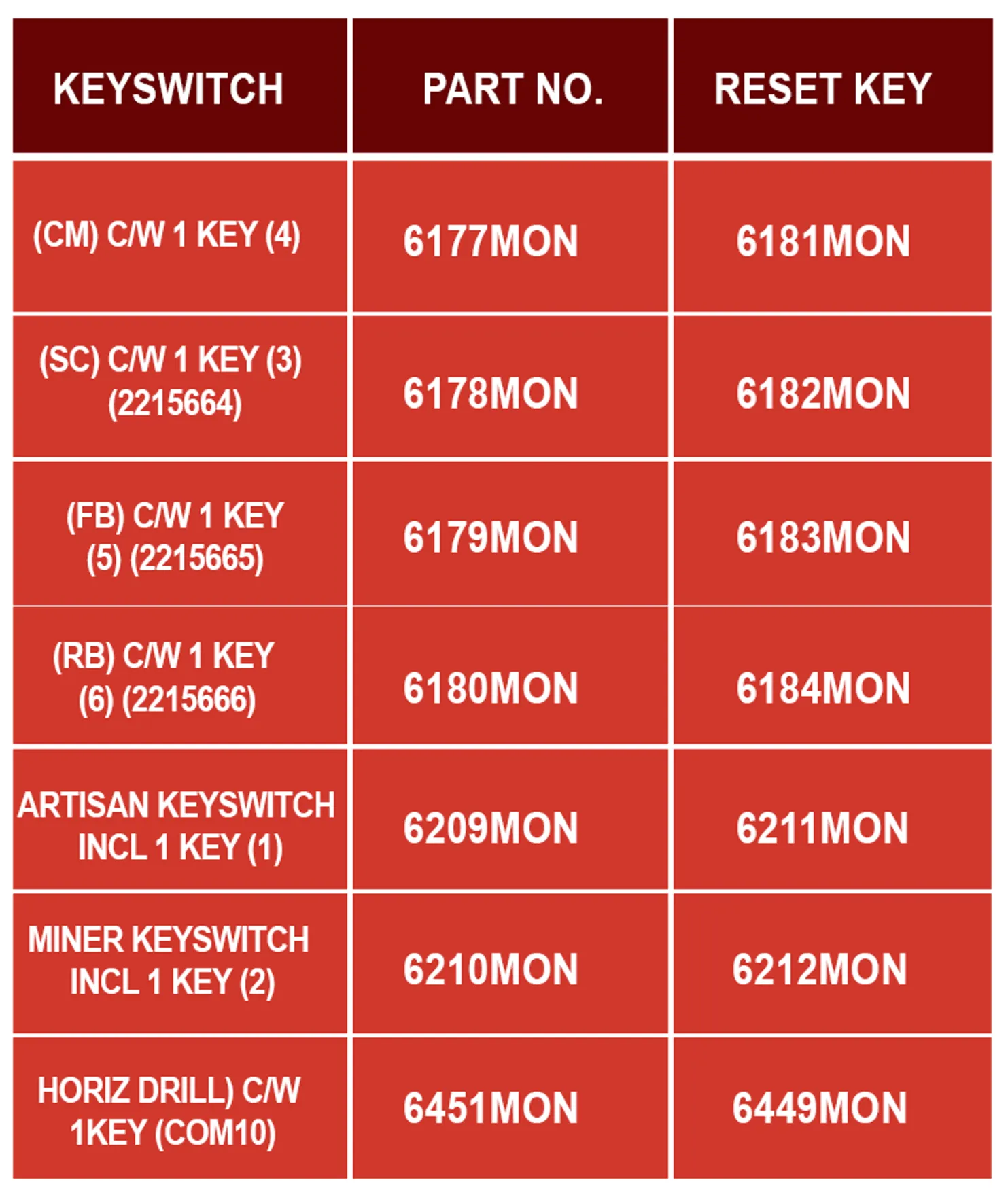

Sasol Products

Sanvik Products

FLAMEPROOF E-STOP LATCHING & LOCKABLE

The Monitech E-Stop Station is a certified flameproof module that allows the E-Stop to be pressed and a lockout lock applied for added safety to the operator should the need arise. The E-Stop is latching and avoids the system accidentally starting once the button is no longer depressed.

FUNCTIONALITY & PERFORMANCE:

  • Proven technology
  • Rugged, certified flameproof enclosure
  • N/C contacts on E-Stop button
  • Rugged button that can be operated while wearing gloves

Specifications:

  • Gland entries 4 x 25mm
  • Contacts Rated 10A @ 240V AC
  • Weight: 3.5 kg
  • Overall height: 150mm
  • Overall Diameter: 150mm

Certifications:

  • Certified Exdb I Mb
  • Certified by MASC in accordance with
  • SANS 60079-1: 2015
  • IA Certification Number: MASC M/22-2047X

Machine Mounted Positions:

PART NO. 6574MON
Contact Us
e-stop-1b
e-stop-2

FLAMEPROOF START/START/E-STOP STATIONS

The Monitech Start/Start/E-Stop Station is a certified flameproof module that allows 3 switching functions in one module and one location. This reduces the need for 3 separate switch enclosures and also makes the E-Stop readily accessible to the operator should the need arise. The E-Stop is latching and also lockable.

FUNCTIONALITY & PERFORMANCE:

  • Proven technology
  • Rugged, certified flame proof enclosure
  • N/O contacts on start buttons
  • N/C contacts on E-Stop button
  • Rugged buttons that can be operated while
  • wearing gloves

Specifications:

  • Gland entries 8 x 25mm
  • Contacts Rated 10A @ 240V AC
  • Weight: 9.86 kg
  • Dimensions: 202mm x 131mm x 87mm

Certifications:

  • Certified Ex db I Mb
  • IA Certification Number: M/25-2154X

Machine Mounted Positions:

PART NO. 6573/1MON
Contact Us
start-start-1
start-start-2

FLAMEPROOF STOP/START/E-STOP STATION

The Monitech Start/Stop/E-Stop Station is a certified flameproof module that allows 3 switching functions in one module and one location. This reduces the need for 3 separate switch enclosures and also makes the E-Stop readily accessible to the operator should the need arise. The E-Stop is latching and also lockable.

FUNCTIONALITY & PERFORMANCE:

  • Proven technology
  • Rugged, certified flameproof enclosure
  • N/O contacts on start buttons
  • N/C contacts on E-Stop button
  • Rugged buttons that can be operated while wearing gloves

Specifications:

  • Gland entries 8 x 25mm
  • Contacts Rated 10A @ 240V AC
  • Weight: 9.86 kg
  • Dimensions: 202mm x 131mm x 87mm

Certifications:

  • Certified Ex db I Mb
  • IA Certification Number: M/25-2154X

Machine Mounted Positions:

PART NO. 6573MON
Contact Us
stop-start-1
stop-start-2

FLAMEPROOF INTELLIGENT FLASHING BEACON

The Monitech Flameproof Intelligent Beacon can indicate multiple states or conditions using colours, speeds or a variety of flash modes. The unit has a default power up and 3 digital inputs. These can be pre-defined by the OEM to an end user’s requirement.

Units with battery backup are available for both the 12/24V and 110/250V versions.

FUNCTIONALITY & PERFORMANCE:

  • Pre-configured, OEM customisable inputs
  • Multi-Colour/Function LED Man-Machine Interface
  • 3 x Digital Inputs
  • 1 x Magnet Input
  • 1 x IrDA interface
  • Certified Flameproof enclosure
  • Optional Battery Backup

Specifications:

  • Input Voltage: 12-24VDC (6579MON), 110-220VAC(6580MON)
  • Power Cosumption < 3W
  • relative humidity: <95% non-condensing
  • Operating temperature: -20°C to +55°C

Beacon Settings:

  • Brightness — The LED’s brightness can be set from 0 to 100%
  • Rotation Speed
  • Rotate mode, the time between the LEDs moving can be set.
  • Colour – The LEDs can be set to any colour on the RGB colour wheel.

Machine Mounted Positions:

PART NO. 6579MON
Contact Us
flashing-beacon-1
flashing-beacon-2
flashing-beacon-3

RESIN TIMER MULTICOLOUR, DC, FLP C/W PUSH BUTTON

The Monitech Resin Timer Beacon gives the user a simple, customisable, LED indication for the different time sensitive phases of installing resin bolts. The push button is used to start a Green Flash for a set time, followed by a Red Flash for a set time. The reed switch can be used to set custom times for the green and red flash. The unit is housed in a flameproof enclosure.

FUNCTIONALITY & PERFORMANCE:

  • Pre-configured, OEM customisable Green and Red Flash Timers
  • Multi-Coloured/Function LED Man-Machine
  • Interface
  • 1 x Digital Input
  • 1 x Magnet input
  • 1x IrDA interface
  • Certified Flameproof enclosure
  • Certified Flameproof push button

Specifications:

  • Input Voltage: 12/24 VDC
  • Power Consumption: <1 W
  • relative humidity: <95% non-condensing
  • Operating temperature: -20°C to +55°C

Beacon Settings:

  • Colour – The LEDs can be set to 3 colours
  • on the RGB colour wheel.

Certifications:

  • MASC M/22-2373X MD10001282
  • FLP Beacon Flasher
  • MASC M/25-2114U MD10001808
  • Momentary Push Button IA

Machine Mounted Positions:

PART NO. 6637MON
Contact Us
resin-timer-1
resin-timer-2
resin-timer-3

FLAMEPROOF TRAM LIGHTS C/W REVERSE FUNCTION

The Monitech Flameproof Tram Lights offer a dependable lighting solution with integrated directional indication. The LED Headlight is designed to replace traditional Halogen Headlights and has green and red LEDs build in as a standard.

FUNCTIONALITY & PERFORMANCE:

  • Forward (White) and reverse (Red/Red + Green) lights
  • High luminous output
  • Works with AC/DC 12 V and 24 V systems
  • OEM dimmable
  • Thermal shutdown
  • Soft startup
  • Tempered glass lens

Specifications:

  • Operating Voltage: 12V-24V AC/DC
  • Ambient Operating Temperature: 0 ⁰C to +60 ⁰C
  • Colour Temperature: 6000K to 6500K
  • Type: 6 x LED
  • Nominal Power Consumption: 12 W
  • Nominal output at 20M: < 20 lux
  • Housing dimension: 152.5H x 114W x 138L mm
  • Housing weight: 5.5 Kg

Certifications:

  • Certified by MASC in accordance with
  • Ex db I Mb
  • MASC M/23-2054X

Machine Mounted Positions:

PART NO. 6578MON
Contact Us
tram-light-1
tram-light-2

FLAMEPROOF AREA LIGHT

The Flameproof Dual Area Light illuminates immediate area around unit installation position. It consists of two LED light clusters that ensure an omni-directional light illumination pattern. The LED light clusters are covered with polycarbonate lenses and with a pure white color output.

FUNCTIONALITY & PERFORMANCE:

  • Flame proof Area Light
  • Polycarbonate Double LED lights
  • Colour: Pure white
  • Manufactured from mild steel
  • Machine mounted Area Light

Specifications:

  • 12VAC to 24VDC VDC/VAC
  • Power consumption: 25Watt
  • Light radiating angle: Omni-directional.
  • Power Supply: 230VAC
  • Connections: Two M25 X 1.5mm FLP cable gland entries.

Connections:

  • Two M25 x 1.5mm cable gland entries

Certifications:

  • Ex db I Mb
  • MASC M/24-3915X

Machine Mounted Positions:

PART NO. 6576MON
Contact Us
area-light-1
area-light-2

FLAMEPROOF AUDIBLE ALARM

The Flameproof Audible Alarm generates an audible tone on request. 5 different tones can be selected from. The unit is powered by 24VDC and are insensitive of polarity. The sounder device is protected from water and dust and sharp object interference.

FUNCTIONALITY & PERFORMANCE:

  • Housing: Flameproof Enclosure.
  • Tones: 5 different tones.

Connections:

  • 6 way connection (1 com – 5 IN)

Mechanical Features:

  • Process connection: 4 x M20 by 1.5mm
  • entries (FLP glands).
  • Material: mild steel gun coated.
  • Weight: 5.82 kilograms.

Specifications:

  • Operating voltage: 24VDC or
  • 110VAC-220VAC.
  • Current: 30mA typically when powered from 24VDC.
  • Nominal Output: 105dB(A) @ 1 meter.
  • Rating: Continuous.
  • Overload protection: Yes.
  • Supply connection: Polarity insensitive.
  • Electrical connection: 2 wire
  • (Tone selected via different IN(X) connection).

Certifications:

  • Ex db [ia] I Mb
  • MASC M/2 4-8 066X.

Machine Mounted Positions:

PART NO. 6572MON
Contact Us
audible-alarm-1
audible-alarm-2

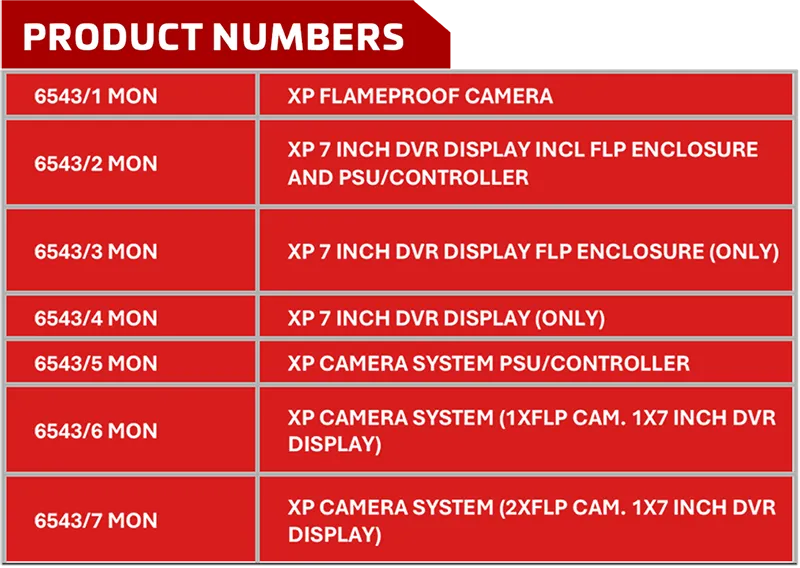

FLAMEPROOF CAMERA SYSTEM & DISPLAY SYSTEM

The Flameproof Low Light Camera System is designed to allow clear views on equipment in dark underground tunnels, increasing visibility for operators, resulting in an increase in safety. The camera is designed to function with minimal light in the area, while still performing in normal light conditions. The Display can show up to 2 Channels at once which is ideal for viewing from both the front and back of the vehicle.

FUNCTIONALITY & PERFORMANCE:

  • Full Colour AHD Camera System With 7” Display
  • DVR Recording Ability
  • Two Channels
  • Low Light Capability, Clear Visibility In The Dark

Power Requirements:

  • 12 VDC Power Supply Input, Additional Supply 24 VDC and 110 – 230 VAC
  • Watts < 6 W

Flameproof Camera Display & DVR:

  • Resolution: 720p
  • Reverse Trigger Function (Optional)
  • Single Or Split Display
  • 16 – 128 GB SD Card (Optional), 10 hours ≈ 8GB
  • Per Camera Housing Dimension: 100H x 185W x 265L mm

Certifications:

Camera:

  • Ex db I Mb
  • MASC M/23-2054X


Display:

  • Ex db I Mb
  • MASC M/22-2374X

Machine Mounted Positions:

Contact Us
camera-1
camera-2
camera-3
camera-4

FLAMEPROOF LINE LASER UNIT

Guidance in roof and side wall bolt drilling ensures that current bolt drilling spacing is maintained.

FUNCTIONALITY & PERFORMANCE:

  • Laser beam shape : green line.
  • Laser module has a 10,000 hours working life.
  • Suggested working distance is from 1 to 20 meters.
  • Laser wavelength is 510 to 530 nm.

Power Requirements:

  • 12VAC to 24VDC VDC/VAC
  • 1 Watt
  • Light radiating angle, more than 90°
  • Laser optical power – 4 to 5 mW
  • Laser power output < 0.39mW
  • Laser class M1

Certifications:

Laser:

  • MASC M/23-2054X

Machine Mounted Positions:

PART NO. 6569MON
Contact Us
laser-1
laser-2

FLAMEPROOF OIL LEVEL BEACON & OIL LEVEL PROBE

The Beacon is used with the Tank Level Sensor to obtain oil level and oil temperature readings inside a machine mounted tank. The Beacon switches 3 relay outputs based on the set Warning and Trip levels. These Warnings and Trips are shown on the Multi-Coloured Beacon LEDs with red, orange, green and different flashing modes for temperature and level. The Tank Level Sensor has no moving parts increasing its reliability.

FUNCTIONALITY & PERFORMANCE:

  • Pre-configured, OEM customisable Warning and Alarm/Trip Levels
  • Multi-Coloured LEDs
  • No moving parts for increased reliability
  • 1 x 4 to 20 mA Oil Level Sensor
  • 1 x Temperature Sensor
  • Intrinsically Safe Barrier
  • Certified Flameproof enclosure
  • OEM settable Warning and Trip levels

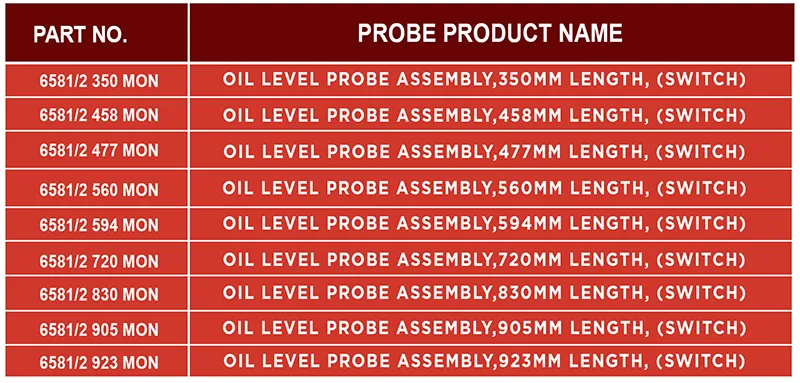

  • Oil level probe lengths up to 923 mm
  • Temperature sensing from -10 to 100 degrees Celsius
  • Drop-in replacement for existing oil level sensors

OIL LEVEVL BEACON FLASHER SPECIFICATIONS:

  • Input Voltage: 110/220 VAC
  • Power Consumption: <5W
  • relative humidity: <95% non-condensing
  • Controller Operating temperature: -20°C to +55°C
  • Relay: 250VAC / 30VDC / 5A MAX

OIL LEVEVL PROBE SPECIFICATIONS:

  • The unit is certified Intrinsically safe.
  • The system is made up of:
    • Monitech Level Sensor Enclosure including Level Sensor and Temperature probe
    • Monitech XPX Enclosure including Controller Unit
    • Flameproof enclosure including Intrinsically safe power supply and interlock relay modules

Beacon Flasher Certification:

  • Certified Ex db [ia] I Mb
  • FLP Beacon Flasher : MASC M/22-2373X
  • Beacon Level Sensor Barrier: MASC M/22-8361X
  • Monitech 1703 Series Pressure Transmitter: MASC M/21-8348X

Oil Level Probe Certification:

  • MASC M/21-8337X (Monitech Temperature Probe)

Machine Mounted Positions:

Oil Level Beacon:

PART NO. 6581/1MON
Contact Us
oil-level-1b
oil-level-2
oil-level-4
oil-level-3
